Introduction:
Solar on the roof isn’t just a tech upgrade; it’s a building-system decision that ties together structure, weatherproofing, electrical safety, and long-term maintenance. When these elements are coordinated, a roof can quietly produce electricity while staying watertight and code-compliant for decades. This article translates the moving parts into practical steps, numbers you can use, and design choices that protect your home’s integrity while improving energy resilience.

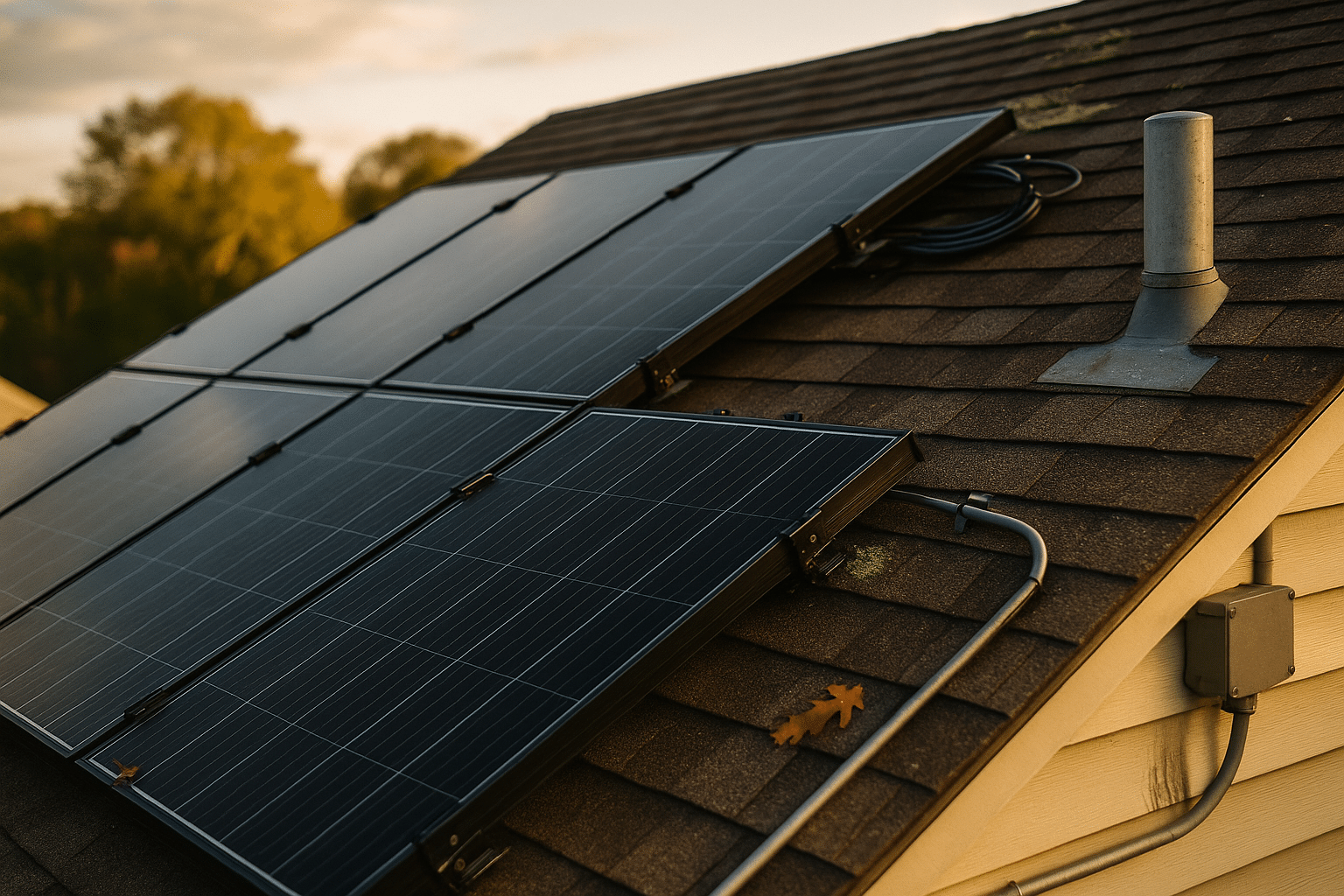

Pre-Design Planning and Structural Assessment

A successful solar-plus-roof project begins with planning that treats the array as part of the building, not an accessory. Start with the roof’s age and condition. If the roof is within the last third of its service life, consider re-roofing first so the solar array doesn’t need to come off in a few years. Next, assess structure. Typical rack-mounted photovoltaic arrays add about 2–4 pounds per square foot (roughly 10–20 kg/m²) on pitched roofs, though ballasted systems on flat roofs can add more depending on wind exposure. That load is modest compared with snow and live loads, but it must be verified against framing capacity, sheathing condition, and local code requirements.

Framing details matter. Rafters or trusses concentrate loads at attachment points, so fastener type, spacing, and placement into structural members are crucial. Designers often account for wind uplift on edges and corners, where pressures can be highest; attachment density may increase in those zones. Waterproofing is equally structural in its own way: a flashed connection is a “system” of shingle layers, metal or polymer flashing, and sealants that work together. Reliance on sealant alone is a common cause of leaks and should be avoided.

Orientation and shade define the energy side of the equation. An unshaded south-facing array in the northern hemisphere at a tilt in the 15–40 degree range is generally efficient, but east or west orientations can still deliver strong production with only modest yield reductions. Use a shade survey with a rooftop tool or app to map obstructions like chimneys, trees, and parapets through the year. Small design tweaks—shifting an array away from a vent or trimming a limb—can prevent outsized losses.

Plan clearances for fire pathways and maintenance. Many jurisdictions require set-backs near ridges and sides for firefighter access. Also consider roof drainage: leave space for gutters to work and avoid trapping debris. A thorough plan review—framing, waterproofing, wind/snow loads, electrical interconnection, and access—sets the stage for a clean permit process and a reliable, quiet-performing system for years to come.

Installation Workflow and Critical Components

Sequencing is your friend. The cleanest installations follow a consistent order that reduces mistakes, protects the roof surface, and makes inspections straightforward. Begin with safety: fall protection, anchored lifelines, and a tidy staging area. Verify rafter locations and snap chalk lines for rails so attachments land squarely in structural members. When re-roofing and solar are combined, coordinate underlayment, flashing kits, and roof penetrations so layers flow downhill as intended. The goal is simple: water sheds, wires are protected, and every fastener has a job.

A typical workflow proceeds as follows:
– Layout: Confirm set-backs from ridges, hips, and valleys; mark array footprint and attachment points.
– Attachments and flashing: Pre-drill pilot holes into framing, inject sealant where specified, and install flashed mounts beneath the upstream course of roofing material.
– Rails and bonding: Set rails true to line and plane; torque hardware; install bonding jumpers to create a continuous equipment ground.
– Power electronics: Mount inverters or DC optimizers according to the design, keeping clear drip loops and strain relief on all conductors.
– Module placement: Lift modules with padded carriers, place, and clamp to manufacturer torque values with mid and end clamps; confirm row spacing for airflow and thermal expansion.
– Wiring and home runs: Route strings or microcircuits neatly; secure cables off the roof surface; transition to conduit with a listed junction box and weatherproof fittings.
– System interconnection: Run conduit to the disconnect, inverter (if wall-mounted), and service equipment; label per code for safety and identification.
– Commissioning: Verify open-circuit voltage and polarity, measure insulation resistance where applicable, check communications, and document as-built conditions with photos.

Waterproofing discipline is non-negotiable. Flashings should tuck under the upper course of shingles or tiles so gravity, not sealant, keeps water out. On standing-seam metal, consider seam clamps that avoid penetrations entirely. On flat membranes, protect penetrations with compatible boots and walkway pads to prevent scuffs and punctures. Electrically, good wire management prevents abrasion, thermal hotspots, and wildlife damage; tidy harnesses double as future-proofing for service.

Finally, think beyond day one. Keep spare fasteners, a few replacement clamps, and an accurate set of drawings with string maps or microcircuit IDs. That simple kit turns a future service call into a short visit instead of a guessing game.

Roofing Materials and Integration Options

Your roof is not generic, and solar should respect its personality. Asphalt shingle roofs are common and pair well with flashed, lag-bolted mounts. Advantages include wide installer familiarity and straightforward flashing details; drawbacks include a shorter roof life relative to solar module lifespans and the potential for granule wear in high-traffic areas. Metal standing-seam roofs invite low-penetration attachment using seam clamps, which can speed installation and preserve waterproofing; verify seam type, gauge, and clamp compatibility, and use isolation pads to limit galvanic interactions between dissimilar metals.

Tile roofs—clay or concrete—can host robust arrays with purpose-built hooks and standoffs, but they demand finesse. Installers often replace individual tiles under mounts with metal or composite base pans to maintain the water-shedding plane while supporting the assembly. Labor is higher because tile removal and careful walking are required to avoid breakage. On flat roofs (TPO, PVC, EPDM, or built-up), ballasted or mechanically attached systems dominate. Ballast reduces penetrations but increases weight; attachments lower weight but require meticulous flashing. Add wind deflectors or edge conditions per design to tame uplift and keep ballast manageable.

Integration comes in flavors:
– Above-roof rack-mounted modules: Excellent airflow, proven components, easy service access; visual profile is higher.
– In-roof framed systems: Modules sit flush with roofing, replacing some covering; cleaner lines, but airflow is reduced and flashing must be curated carefully.
– Solar shingles or tiles: Aesthetically subtle and fully integrated, acting as both weather barrier and generator; trade-offs include higher cost, smaller unit sizes, and potentially lower performance per square foot due to heat and airflow limitations.

Match material lifespan with system choices. Metal roofs can last 40–70 years, making them a natural partner for a 25–30 year solar asset. Asphalt shingles vary widely, often 20–30 years; if yours is mid-life or older, plan a re-roof before or during solar installation. Think about serviceability: can a single module be removed without dismantling an entire bay? Are replacement tiles or shingles readily available if access is needed later? Choosing an integration path is ultimately a balance of aesthetics, cost, performance, and maintenance simplicity.

Performance, Safety, and Tangible Benefits

Performance begins with sunlight and ends with your meter, and every design decision in between leaves a fingerprint. A common planning estimate is that 1 kW of rooftop solar can produce roughly 1,000–1,600 kWh per year depending on location, tilt, orientation, and shading. South-facing arrays in sunny climates trend high; east/west orientations or cloudier regions trend low, typically with single-digit to low double-digit percentage differences. Module efficiency has steadily climbed into the high teens and low twenties, but heat remains the quiet enemy: hotter modules make less power. That’s one reason a ventilated gap under rack-mounted modules helps—convection cools the backsheet and bumps real-world yield.

Shading losses can surprise. A small vent casting a shadow across a string can curtail output if bypass diodes or power electronics are not planned carefully. Practical steps include:
– Group modules with similar shade profiles on the same string or circuit.
– Use power electronics that mitigate mismatch where complex roofs demand it.
– Keep obstructions (flues, chimneys) out of array rows or plan for row offsets.
– Maintain clean glass; dust and pollen can shave a few percentage points until the next rain.

Benefits go beyond kilowatt-hours. Arrays shade roofing, which can reduce surface temperatures by several degrees and may slow material aging. Attics can run cooler in summer, lowering cooling loads in warm climates. The array also acts as a shield against hail and UV on the covered area, though edge details and penetrations remain points of diligence. Noise-wise, rain on modules is a soft tap—often quieter than on bare metal or tile.

Safety threads through the whole design. Electrical codes call for equipment grounding, labeling, proper overcurrent protection, and rapid-shutdown features to help first responders. Mechanical safety includes secure attachments, wind deflectors where needed, and snow guards in cold regions to control sliding. A system that is thoughtfully engineered, verified with a final torque check and commissioning report, and monitored over time is more than a power plant; it’s quiet infrastructure woven into the roof itself.

Decision-Making Roadmap: Costs, Codes, Maintenance, and Conclusion

Budget, permitting, and care are where the plan becomes reality. Installed costs vary by region, roof type, and equipment choices, but many residential rooftop systems land in a broad range of about 2–5 currency units per watt before incentives. Roof-integrated products and tile installs often sit higher due to labor and specialized components. For a 7 kW system, that can translate to a wide span, with incentives, tax credits, or rebates narrowing the net price depending on local policies. Avoid chasing headline numbers; focus on lifetime cost of energy, serviceability, and roof coordination.

Permitting and interconnection timelines can range from quick turnarounds to several weeks. A complete package usually includes structural calculations or prescriptive tables, a one-line electrical diagram, layout with set-backs, and product cut sheets. Expect inspections to verify mounting hardware, flashing, conductor sizing, grounding, labeling, and disconnect locations. Homeowner associations or design review boards may request a visual mock-up; early communication saves time.

Plan for decades, not days:
– Re-roofing coordination: If the roof will need replacement before year 25, budget for detach/reinstall; costs are often a few hundred units per kW.
– Warranties: Look for module performance coverage to year 25 (commonly with 0.3–0.7 percent annual degradation), product warranties for inverters near a decade, and documentation on racking corrosion resistance.
– Maintenance: Annual visual checks for loose conductors, debris, and flashing integrity; wash only when soiling is persistent, using soft brushes and clean water; avoid pressure washers.
– Monitoring: Track monthly production; investigate notable drops that can signal shading changes, tripped breakers, or failed components.

Conclusion for homeowners and building stewards: Treat your solar array as part of the roof, and your roof as part of the energy system. When structure, waterproofing, and wiring are designed as a whole, you gain reliable energy, a protected building envelope, and predictable upkeep. Start with a candid assessment of roof age and shading, choose an integration approach that matches your material and aesthetic priorities, and insist on documented flashing and wire management details. Do that, and your roof quietly earns its keep—one sunny hour at a time—while staying ready for the storms that follow.
