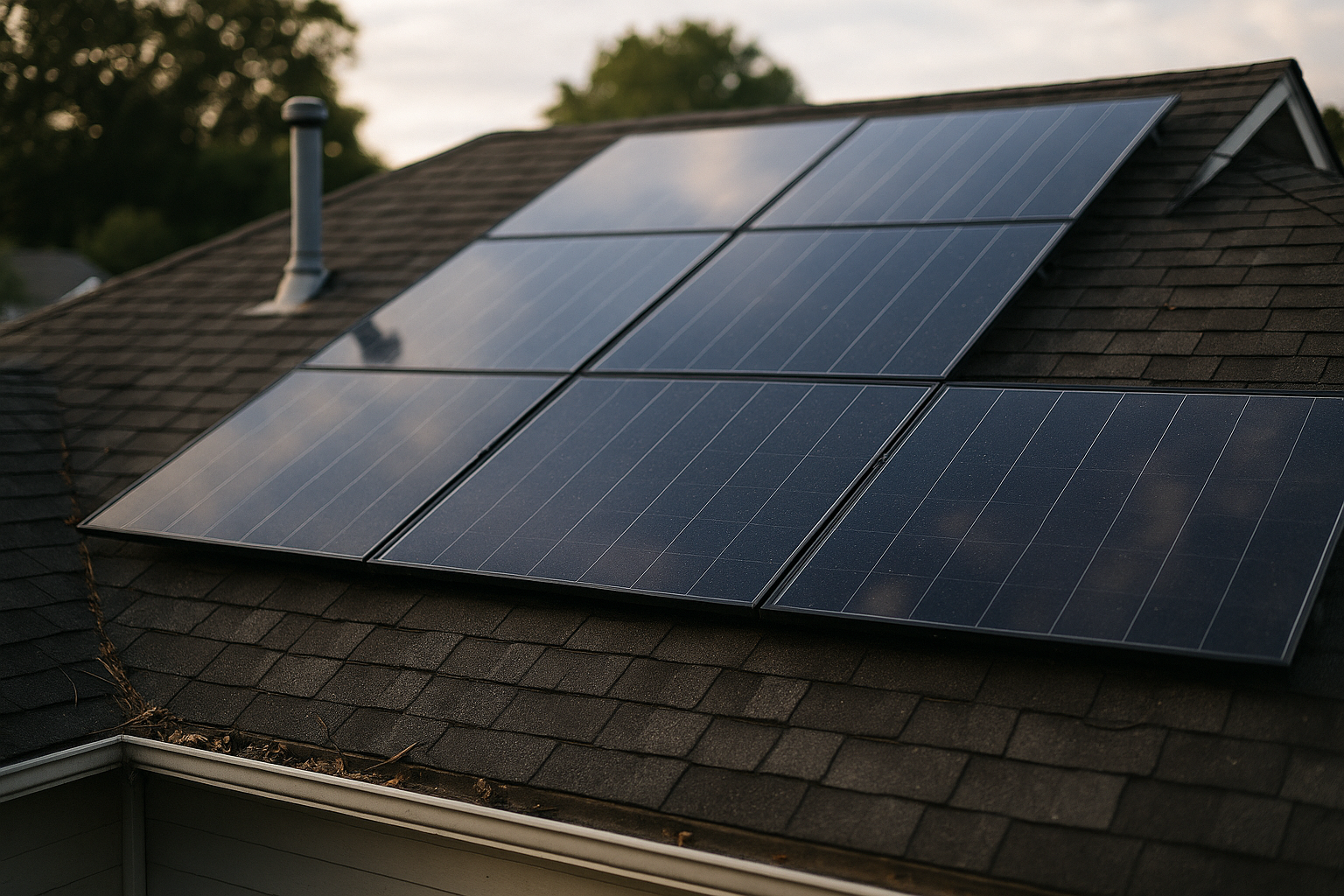

Solar Panels and Roofing: Installation Steps, Benefits, and Structural Considerations

Roof Readiness and Structural Considerations

A solar array is only as reliable as the surface beneath it. Before thinking about wattage or layout, assess the roof’s age, condition, and framing. Asphalt-shingle roofs nearing the final third of their service life typically warrant replacement before solar; it is far easier and more economical to combine reroofing with a new array than to remove hardware later. Standing-seam metal often welcomes clamp-on attachments with no penetrations and a long service life. Concrete or clay tile can support solar well, but hardware needs to bridge tiles and fasten to the structural deck; delicate tiles may require lift-and-replace techniques or a transition to composite flashings at attachment points. Low-slope roofs with single-ply membranes (TPO/EPDM) or modified bitumen work with ballasted or mechanically attached systems, selected based on wind zones and membrane warranties.

Loads matter. Typical flush-mounted crystalline modules and rails add roughly 2.5–4.0 pounds per square foot (psf), depending on hardware; ballasted flat-roof designs can range higher, roughly 3–6 psf, to resist uplift. Those numbers must be layered onto existing dead loads, snow loads, and live loads defined by local codes. In high snow regions, drift zones near ridges and parapets can drive design adjustments. In high-wind regions, edge and corner zones experience amplified suction; attachment spacing tightens accordingly. Many jurisdictions reference standardized wind and snow load methods to size hardware, while licensed structural engineers evaluate truss spans, rafter dimensions, sheathing thickness (often at least 7/16-inch OSB or plywood), and fastener edge distances. If you see excessive deflection, cracked members, or undersized rafters, the fix is reinforcement—sistering members, adding blocking, or upgrading sheathing—before solar goes in.

Water is relentless, so penetrations must become features, not flaws. High-quality flashings slide under the course above the roof plane, paired with sealants compatible with roofing materials. On metal, clamp-on attachments avoid holes altogether; on tile, standoffs are flashed to the deck, not the tile itself. Good practice respects drainage: avoid trapping water behind rails, maintain clear pathways to gutters, and keep debris from forming dams around attachments. Fire classification also matters. Many arrays and roof coverings are tested in combinations for a Class A solution when installed per instructions, which can influence standoff height and component selection.

To organize your structural review, consider this quick checklist:
– Roof age, material, and warranty status
– Framing capacity: rafters/trusses, spans, sheathing and fastener pullout
– Environmental design: wind exposure, edge/corner zones, snow drifts
– Fire classification of the overall roof-plus-array assembly
– Drainage, penetrations, and access pathways for maintenance

Viewed this way, the roof becomes both the foundation and the weather shell of your energy system. Attend to it early, and the rest of the project tends to flow more smoothly.

Installation Workflows and Mounting Interfaces

A well-run solar-and-roofing project feels choreographed: each step clears the stage for the next. It begins with a site survey and shade analysis, often using digital tools to quantify annual solar access and seasonal obstructions. Measurements confirm roof geometry, valley and ridge locations, eave overhangs, and access setbacks required by local fire or building codes. From there, a layout grid is drafted: attachment rows align with rafters or purlins, rails follow that rhythm, and module dimensions drive the final array footprint. If reroofing, crews sequence underlayment and flashings to avoid double work—mounts are coordinated so the waterproofing is integral, not tacked on afterward.

Rafter location can be verified with a combination of attic inspection, fastener pattern reading, and electronic stud finders. Pilot holes confirm targets and reveal wood condition. For shingle roofs, a common sequence is: underlayment placed and lapped to spec; flashings slid beneath the upper course; stainless lag screws set into framing; standoffs or L-feet leveled; rails installed, bonded, and aligned; then modules placed and clamped with prescribed torque. On standing-seam metal, machined clamps grab the seam; the rail often becomes optional if direct-seam hardware is used, shrinking parts count and eliminating penetrations. With tile, installers may remove tiles at attachment points, install deck flashings and standoffs, and then replace tiles with carefully cut reliefs around hardware to maintain water flow. Flat-roof arrays may use ballast trays with pads that spread load and protect membranes; in higher winds or taller buildings, hybrid designs add mechanical anchors to trim ballast mass and height.

Throughout, weatherproofing and load paths remain the themes. Penetrations get backer plates or oversized flashings where needed. Rail splices and couplings are positioned to avoid concentrated bending at mid-spans. Wire management is planned from the first module: clips and UV-rated ties elevate conductors off hot surfaces and away from drainage paths. Access and safety are built into the layout—setbacks around ridges, hips, valleys, and eaves not only satisfy codes but also give room for maintenance. If an inverter or combiner box will mount outdoors, choose shaded, ventilated locations to moderate thermal stress, and route conduits in ways that shed water and minimize exposed runs.

Building-integrated photovoltaics (BIPV) deserve a special note. Instead of mounting modules over shingles, BIPV replaces part of the roofing surface with solar laminates, shingles, or glass-on-metal tile formats. The upside is a clean visual line and fewer penetrations; the tradeoff is tighter coordination with underlayment, flashing kits, and drainage planes, since the solar product is now the weather surface. Slopes, overlaps, and terminations must be detailed as carefully as any roofing edge. Done well, BIPV becomes a single, integrated skin—an energy-generating roof that sheds water with elegance.

As an installer might say: measure twice, flash once, and the rest of the day feels lighter.

Electrification, Wiring, and Code Compliance

Electrical design ties the project together. At a high level, you’ll choose between module-level power electronics (microinverters or DC optimizers with a central inverter) and traditional string inverters. Each approach has merit. Microinverters convert DC to AC at each module, offering module-level monitoring and limiting high-voltage DC on the roof. DC optimizers still aggregate strings at a central inverter but allow per-module maximum power point control to mitigate shade and mismatch. Traditional string inverters without module-level devices remain a solid option for unshaded, uniform planes. In modest shading, module-level devices often reclaim a few percentage points of annual yield.

Key decisions include:
– Array size relative to service capacity and local interconnection limits
– Rapid shutdown method to meet roof-mounted system safety rules
– Conductor types, ampacity, temperature ratings, and conduit fill
– Grounding and bonding paths to maintain touch-safe continuity
– Interconnection strategy: load-side breaker, supply-side tap, or dedicated generation panel

Conductor routing deserves forethought. Keep rooftop DC or AC homeruns elevated, secured every few feet, and protected from abrasion at transitions. Drip loops at vertical drops keep water from tracking into enclosures. Penetrations use listed fittings and are sealed to the roofing system’s standard. In many jurisdictions, rapid shutdown is required so first responders can de-energize conductors outside defined boundaries; this influences equipment selection and junction box placement. Arc-fault detection in the DC circuit further reduces fire risk, and labeling requirements help responders identify system boundaries quickly.

Inside the electrical room or near the service panel, interconnection details matter. The common “120% rule” may limit how much PV current a load center can accept on a busbar; solutions include using a breaker at the opposite end of the main, downsizing the main breaker per utility permission, or applying a supply-side connection upstream of the main service disconnect. Each pathway has permitting and utility-review implications. For system sizing context, many homes install 4–12 kWdc; production varies widely by location and tilt, but a 7 kWdc system in sunny regions can yield on the order of 9,000–11,000 kWh per year, while cloudier regions may see proportionally less. Arrays tilted near local latitude often balance annual performance, though roof pitch and aesthetics usually dictate the final angle.

If energy storage is in the plan, reserve wall space, conduit paths, and clearances now, even if batteries arrive later. Storage adds islanding controls, transfer equipment, and new load calculations, particularly for backup circuits. The unglamorous but indispensable step is documentation: single-line diagrams, datasheets, attachment details, and calculation packages smooth permitting, inspection, and utility approvals—and help the next technician who services your system ten years from now.

Performance, Benefits, and Building Science Effects

The appeal of combining roofing work with solar is part economics, part physics, and part peace of mind. Economically, doing both together reduces labor duplication and preserves the roof warranty continuity around penetrations. Physically, modules shade and protect the roof surface beneath, raising the intriguing building-science question: do panels make roofs last longer? While specific results depend on climate and ventilation, research and field data suggest modules can reduce peak roof surface temperatures and attenuate UV exposure. Attics in hot climates may see modest reductions in peak heat gain where modules provide shade and airflow beneath, which can support comfort and HVAC efficiency.

Performance on the meter depends on orientation, shading, and hardware choices. South-facing arrays (in the northern hemisphere) or north-facing (in the southern hemisphere) with minimal shade see strong annual yield; east-west arrays spread production over more hours, which can align better with household loads. Module-level devices can trim shading penalties, especially where chimneys, dormers, or neighboring trees pinch a few modules during parts of the day. For homeowners under time-of-use tariffs, orienting part of the array to favor late-afternoon production can improve bill outcomes even if absolute kWh is lower. Net energy rules vary, but many regions compensate exported energy at favorable rates, while others incentivize self-consumption; either way, aligning appliance schedules (water heating, EV charging) with solar output increases value.

Beyond the meter, the benefits are tangible:
– Roof protection: modules shield shingles or membranes from hail, UV, and thermal cycling
– Thermal effects: shade and airflow under rails can moderate roof temperatures
– Resilience: with storage or approved backup controls, critical loads can ride through outages
– Real estate: solar can improve marketability where buyers value lower operating costs

There are also sensible caveats. Snow shedding from smooth module surfaces can arrive in sudden slides; installing snow guards above eaves in snowy climates helps manage that risk. In wildfire-prone areas, keeping debris out from under arrays reduces ember ignition hazards. And while many arrays produce steadily for decades, degradation is real; planning with a measured annual output decline (often around 0.3–0.7% per year, per manufacturer literature) yields more realistic lifetime projections. In short, the benefits are durable when partnered with sound design and maintenance.

Costs, Warranties, Maintenance, and Long‑Term Planning

Cost is where roofing-plus-solar strategy can shine. When reroofing and installing solar in one project, you avoid duplicate mobilization and the future labor of removing and reinstalling hardware for a mid-life reroof. Installed prices vary by region, roof complexity, array size, and equipment choices, but thinking in cost buckets clarifies decisions: modules, power electronics, racking and attachments, balance-of-system wiring and protection, labor, permits and inspections, and overhead. Roof-specific line items include underlayment upgrades, flashings, tile work or seam clamps, and any structural reinforcement.

Financial outcomes hinge on incentives and energy rates. Some regions offer tax credits, direct rebates, or performance-based payments; others emphasize low-interest financing or property-assessed programs. Sensible planning uses conservative production estimates, realistic degradation, and utility tariffs as published—no wishful math. Many homeowners see payback windows in the mid to low double digits of years, faster where incentives or high electricity costs apply, slower where rates are modest. Time-of-use structures, self-consumption strategies, and future electrification (vehicles, heat pumps) can further influence results. A well-documented proposal should include a sensitivity analysis showing outcomes under varied utility inflation rates and shading assumptions.

Warranties and service terms keep expectations aligned. Modules commonly carry a product warranty and a longer performance warranty promising a percentage of nameplate output after 20–30 years. Inverters and power electronics often carry shorter base terms with options to extend. Racking and attachment hardware should match the roof’s expected life; roof leak workmanship warranties—especially around penetrations—are crucial when roofing and solar teams coordinate. Keep copies of installation details and pictures of flashing at each attachment; if you ever have to prove a detail to an insurer, photos are priceless.

Maintenance is straightforward but not zero. Annual or semiannual visual checks catch loose conductors, debris buildup, and sealant wear. In dry, dusty climates or near heavy pollen, gentle cleaning with water can restore output—avoid abrasive tools and harsh chemicals. After severe storms, a quick inspection for cracked glass, shifted rails, or lifted flashings is wise. Monitoring portals alert you to performance dips; set a calendar reminder to review production monthly. Insurance considerations include notifying your carrier, verifying coverage for rooftop solar, and confirming replacement cost terms.

Plan for the project’s full lifecycle:
– Reroof coordination: if replacement is due within a decade, reroof first
– Future storage: reserve wall space, clearances, and conduit pathways now
– Equipment replacements: schedule inverter refresh windows in financial models
– Decommissioning and recycling: identify local options for modules and metals
– Documentation: maintain as-builts, warranties, and structural calculations

Think of the system as a durable appliance integrated with your building shell. With thoughtful sequencing, transparent costs, and documented details, you can set expectations that age gracefully along with the roof beneath the array.
